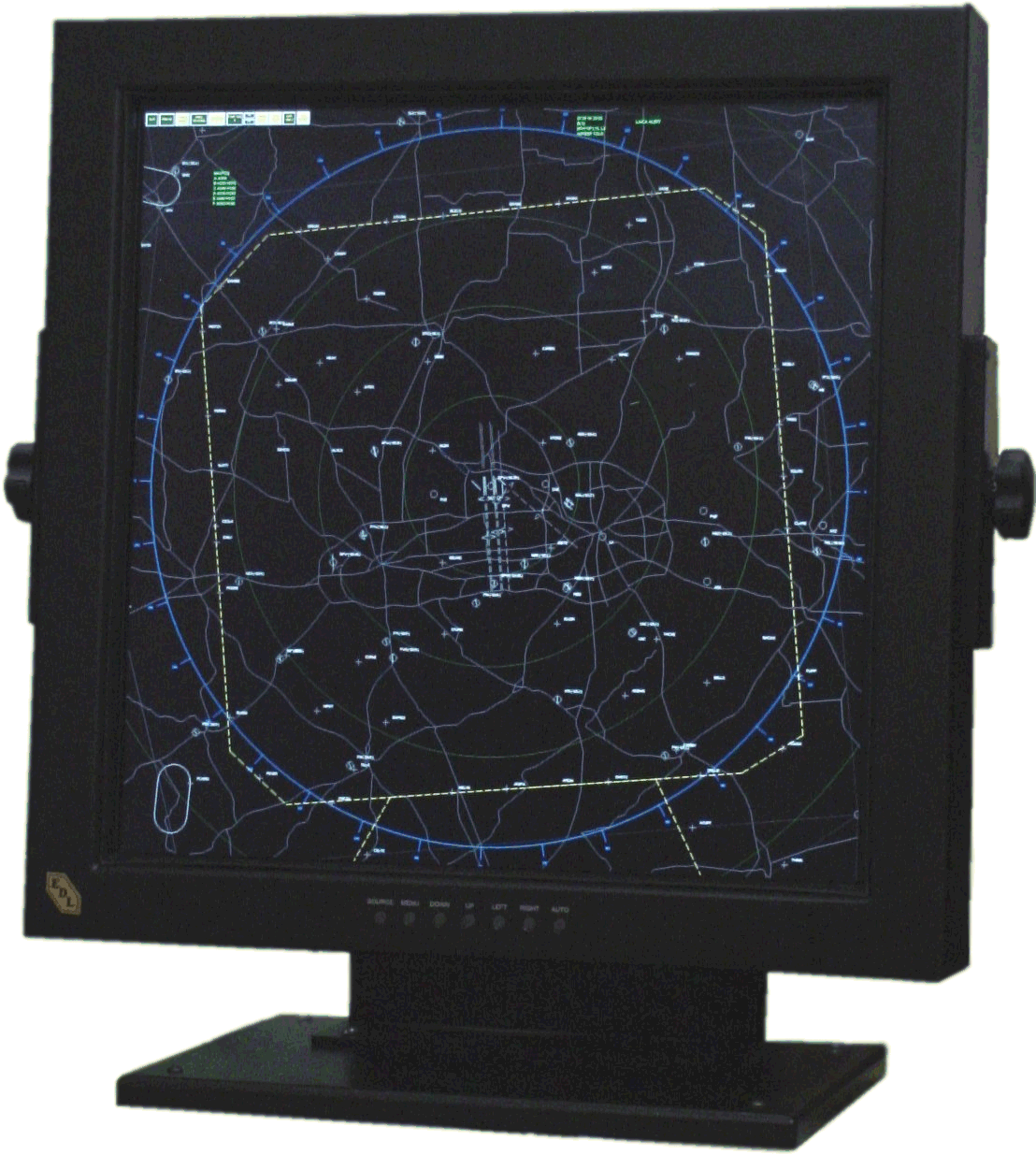

Model 30281 Monitor Designed for the ATC Environment
Applications:
- Sony DDM ATC Display Replacement
- Air Traffic Management (ATM)
- Air Traffic Control (ATC)
- Vessel Traffic Management (VTM)
- Command and Control (C³)
- DVI and VGA Inputs for new systems
General Information
-=LCD=-
- 28.1" diagonal, 20" x 20" Sharp LCD
- 2048 x 2048 Native Resolution
- High Brightness - 225 cd/m²
- Contrast Ratio - 450:1
- Viewing Angle - ± 85° H and V, no color shift
-=Control=-
- OSD Quick Menu Controls
- Extensive OSD Calibration and Setup Controls
- Wide dimming range
- Manual Backlight Standby
- Built In Test Patterns
- Freeze Frame
- Testing and Control via SNMP Compatible Data over Ethernet or RS-232
- Plug-and-Play Compatible
-=Controller=-
- 2 Analog and 3 Digital Video Inputs
- Displays VESA formats from 640 x 350 to 2k x 2k
- Auto Setup Function
- Exceptional Scaling Quality
- Adaptive Stipple Noise reduction system
- 360 MHz Bandwidth
-=Mechanical=-
-
Anti-Reflective Safety Panel
- Available dry mounted or
- Optically bonded
- Panel Mount, Desktop, or VESA Mount
- Rugged Aluminum Construction
- Low Power, Cool Running
Drawings:
Panel Mount
Outline Drawing
Chassis
Outline Drawing
Desktop
Outline Drawing
DDM Kit
Outline Drawing
Specifications
-=Display=-
Active Area: 503.808mm x 503.808mm (19.83" x 19.83")
Native Resolution: 2048 X 2048
Pixel Pitch: 0.246mm (0.082 X RGB)
Colors: 16,777,216 (256 gray levels)
Luminance: 225 cd/m²
Luminance Variation: 10% (MAX, AT 25°C)
Viewing Angle, H: ±85° (typical, for CR ≥ 10) ±70° minimum
Viewing Angle, V: ±85° (typical, for CR ≥ 10) ±70° minimum
CIE White: X = 0.313, Y = 0.329 (typical at 25°C)
CIE Red: X = 0.607, Y = 0.339 (typical at 25°C)
CIE Green: X = 0.287, Y = 0.597 (typical at 25°C)
CIE Blue: X = 0.145, Y = 0.087 (typical at 25°C)
Response Time: tr = 5msec, tf = 20msec (typical, at 25°C)
Analog Specifications:
- Video Bandwidth: 360MHz
- Horizontal Freq: 15KHz - 128KHz
- Vertical Freq: 30Hz - 80 Hz
-=Backlight=-
Type: 18 CCFL Lamps
Lifetime: 50,000 hrs
-=Electromagnetic Environment=-
Susceptibility: Per EN50082-1
Emissions: Per EN50081-1, FCC class B
-=Data I/O=-
Data Interface:
- 7 Button Front Panel Controls w/OSD
- 10/100 Base-T Ethernet on RJ-45 Connector
- RS-232 on DB9 or DB15 connector
- SNMP compatible data structure
- IR Remote w/OSD
-=Inputs=-
Video Signal Input: RGB digital (DVI and TMDS) or RGB analog (5BNC and DVI)
Sync Signal Input: Separate TTL H&V, Composite TTL, Sync on green
Sync Selection: Automatic
Signal Connector:
- 5 BNC ** with 50Ω RGB and 75Ω H&V
- Analog input on DVI-I connector
- 2 Dual Link DVI inputs on DVI-I connectors
- Dual Channel TMDS input on 2 MDR-26 connectors
-=Physical Environment=-
Temperature (operating): 0°C to +40°C
Temperature (storage): -20°C to +60°C
Relative Humidity (operating): 85%, non-condensing (to 40°C)
Relative Humidity (storage): 85%, non-condensing (to 55°C)
Altitude (operating): Sea level to 15,000ft (4500m)
Altitude (storage): Sea level to 40,000ft (12000m)
Shock (operating): 20g, 11msec ½sine
Shock (storage): 20g, 11msec ½sine
Vibration (operating): 0.7g 2 to 13 Hz; 1.0g 14 to 500 Hz, 3 axes
Vibration (storage): 0.7g 2 to 13 Hz; 1.0g 14 to 500 Hz
Weight (in standard configuration): Chassis Mount 46lbs. (20.9kg)
Weight (in standard configuration): Panel Mount 50lbs. (23.2kg)
Weight (in standard configuration): Desktop 46lbs. (21.0kg)
Power (in standard configuration): 85 to 264VAC, 50/60Hz*, 165W (max), 135W (typical), PF corrected.
*(400Hz operation possible with increased ground leakage current)
-=Safety=-
Safety: Per UL/C 1950, EN60950
-=OSD Functions=-
Quick Menu:
- Brightness
- Contrast
- Backlight
- Scaling Mode
Calibration Controls:
- Picture
- Brightness (Video)
- Contrast
- Phase (Sampling)
- Frequency (Sampling)
- H Position
- V Position
- Backlight (Intensity)
- OSD
- H Position (OSD Window Location)
- V Position
- OSD Timeout
- Utility
- Freeze Frame ON/OFF
- Reset (Factory Defaults)
- Color Temp
- Standard Presets
- User Presets
- Manual R-G-B
- Information (Current operating rate and status)
