Model 3120

Model 3120 Monitors for Industrial and Military Applications.

3120 Monitor
Features:


General Information

-=Very High Resolution=-

EDL Displays Color Monitors have the highest resolution available. The .255mm pixel pitch liquid crystal display provides the sharpest images available with resolutions up to and including 1600 X 1200.

-=Fast Response Time=-

With a video response time of 25msec the 3120 can display full motion video.


-=Reliability=-

The monitor is designed with reliability as paramount in importance. Reliability is accomplished by using high quality parts and assuring that these parts are operating at less than their intended stress levels.

-=Ease of Adjustment=-

All controls that may be necessary to adjust in the field are available via the on screen display menu.

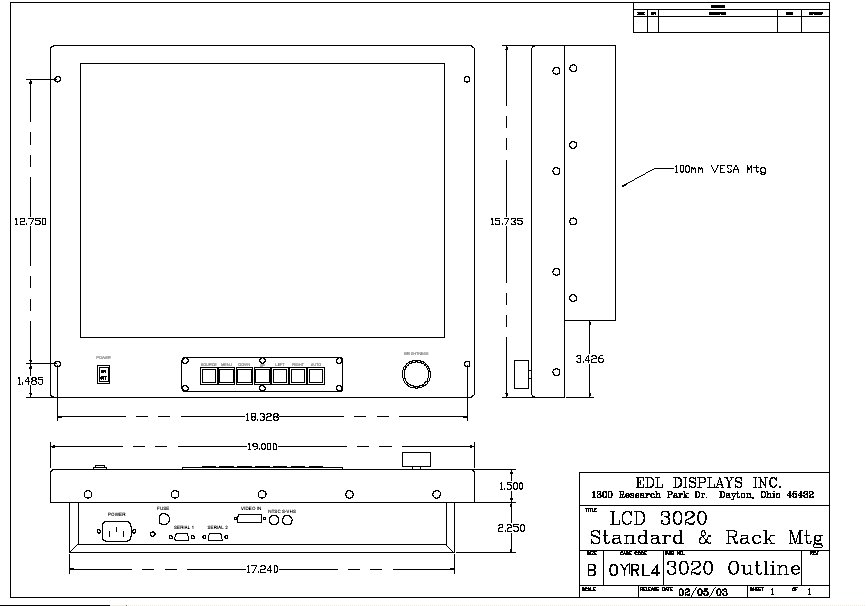

[click image for larger drawing]


Preliminary Specifications

-=Display=-

Active Area: 408.0mm x 306.0mm (16.06" x 12.04")

Native Resolution: 1600 X 1200

Pixel Pitch: 0.255mm (0.085 X RGB)

Colors: 16,777,216 (256 gray levels)

Contrast Ratio: TBD

Luminance: 250 cd/m²

Luminance Variation: 10% (MAX, AT 25°C)

Viewing Angle, H: ±80° (typical, for CR ≥ 10)

Viewing Angle, V: ±80° (typical, for CR ≥ 10)

CIE White: X = 0.294, Y = 0.309 (typical at 25°C)

Response Time: tr = 20msec, tf = 5msec (typical, at 25°C)

-=Backlight=-

Type: 6 CCFL

Lifetime: 50,000 hrs
(typical, at 25°C)

-=Electromagnetic Environment=-

Susceptibility:Per EN50082-1

Emissions: Per EN50081-1, FCC class B

-=Safety=-

Safety: Per UL/C 1950, EN60950


-=Physical Environment=-

Temperature (operating): 0°C to +55°C

Temperature (storage): -20°C to +71°C

Relative Humidity (operating): 95%, non-condensing (to 55°C)

Relative Humidity (storage): 95%, non-condensing (to 71°C)

Altitude (operating): Sea level to 15,000ft (4500m)

Altitude (storage): Sea level to 40,000ft (12000m)

Shock (operating): 30g, 11msec ½sine

Shock (storage): 30g, 11msec ½sine

Vibration (operating): ±1mm, 2 to 13Hz; 0.7g, 13 to 100Hz, 3 axes

Vibration (storage): TBD

Weight (in standard configuration): 30lbs. (14Kg)

Power (in standard configuration): 100W

-=Inputs=-

Video Signal Input: RGB digital (TMDS) or RGB analog, 0.7Vp-p into 75Ω

Sync Signal Input: Separate TTL H&V,
Composite TTL H&V,
Sync on green

Sync Selection: Automatic

Signal Connector: DVI-I for RGB, DIN for S-video, RCA jack for composite video (RGB via HD-15 or BNC handled with cable options)




Configuration Guide

A 3120 monitor is specified using the model numbering scheme illustrated below. The full model number consists of a base model number followed by a series of letters indicating options installed.

Example: A 3120 with a VESA mount, 24V input, AR coated glass and laminated would have a part number of.

3120-24V-BD

  Option Code
Mounting Options
VESA Mount Standard
Rack Mount RM
Console Mount CM
Table Top Stand TM
Power Supply Options
115 to 230VAC Input (85 to 265VAC, 47 to 66Hz and 400Hz), IEC receptacle Standard
24VDC Input (-18VDC to +32VDC), screw terminal block 24V
115 to 230VAC Input (85 to 265VAC, 47 to 66Hz and 400Hz), Military connector MC
Screen Overlay Options
Strengthened glass, A-R coating Standard
Strengthened glass, fine etch ET
Capacitive touchscreen, A-R etch, 88% transmissivity, with integrated serial or USB controller CT
Resistive touchscreen, with integrated serial or USB controller RT
Surface Accoustic Wave (SAW) touchscreen, with integrated serial or USB controller ST
Screen Overlay Mounting Options
Mounted Glass Overlay Standard
Laminated (Optically Bonded) Glass BD
Operator Controls Options
Front controls, including digital controls for OSD, analog luminance control, power switch Standard
Front controls, including digital controls for OSD, analog luminance control, no power switch NP
Optional Modules
Integrated Terminal Server or X-terminal Thin Client TC
Two Input Video Switch VS2
Accessories
Remote Control Option
IR Remote controls IR
Cable Options
DVI-I to DVI-D, 2m DVID
DVI-I to DVI-A, 2m DVIA
DVI-I to HD-15, 2m HD15
DVI-I to 5 BNC, 2m BNC
Cable FAQ is available at http://edldisplays.com/support/cable-faq.php
Mounting Kits
Yoke Mounting Kit YK
Table Top VESA Mount Kit TK
Wall Mount VESA Kit WK
